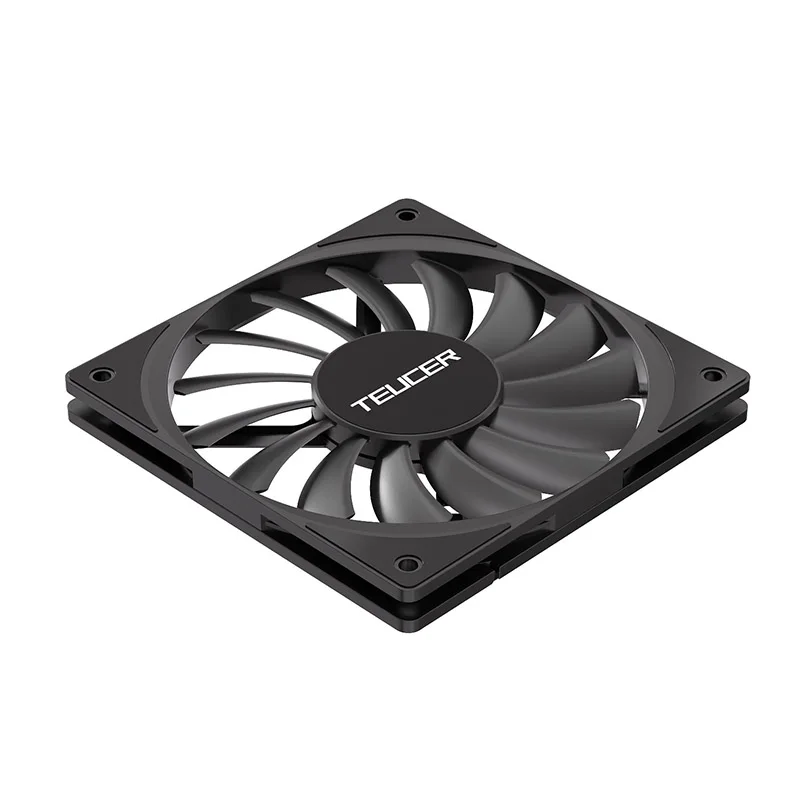

Maximize cooling in tight spaces with this ultra-slim performance fan. Engineered for compact builds and low-profile coolers, it delivers efficient airflow without sacrificing your system's design. The advanced fluid dynamic bearing ensures whisper-quiet operation and exceptional longevity, keeping your PC cool and silent for years. PWM speed control adapts to your thermal needs automatically. Ideal for mini-ITX enthusiasts who demand premium cooling in minimal footprint.

General Information

• Brand: TEUCER

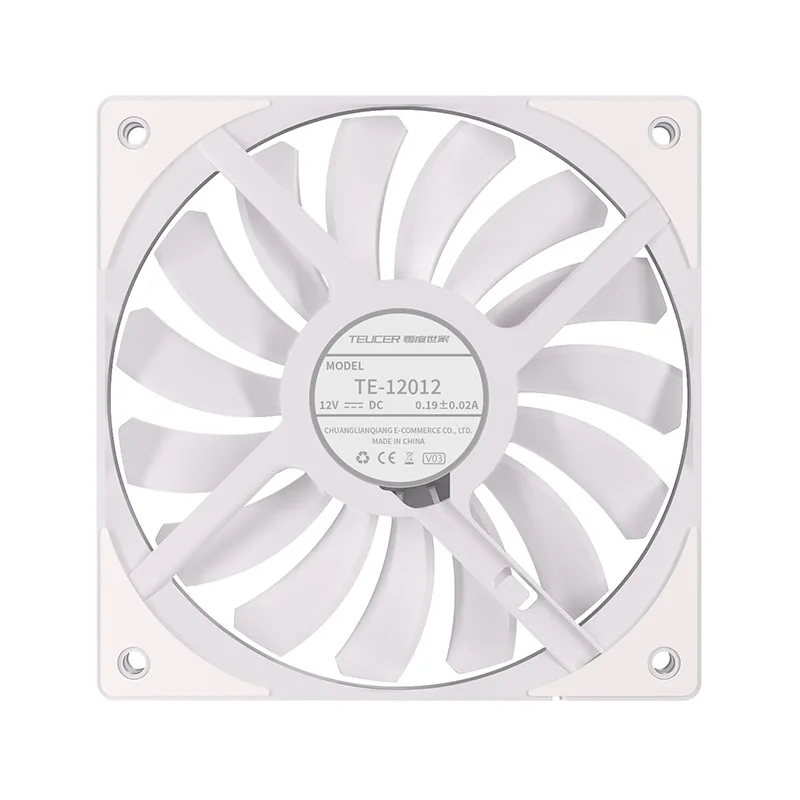

• Model: TE-12012

Physical Specifications

• Fan Size: 120 × 120 × 12 mm (4.7 × 4.7 × 0.47 in)
• Blade Quantity: 15

Bearing and Durability

• Bearing Type: S-FDB (Fluid Dynamic Bearing)
• Fan Lifetime: 100,000 hours

Electrical Specifications

• Rated Voltage: 12 V DC
• Rated Current: 0.19 A (±0.02 A)
• Power Connector: 4-Pin PWM

Performance Characteristics

• Fan Speed Range: 500–1800 RPM
• Airflow: 45.8 CFM (77.8 m³/h)
• Static Pressure: 1.42 mmH₂O (0.056 inH₂O)
• Noise Level: 30.5 dBA

Control Features

• Speed Control: PWM intelligent speed regulation

Application

• Application: PC case cooling, radiator cooling
