Managing multiple high-speed drives and desk connections feels cleaner with the ORICO Miniraid Dual M.2 SSD Enclosure & Docking Station, a premium ORICO enclosure and docking hub designed to centralize storage, display, and power. It brings order to complex workflows by combining fast SSD access, RAID protection, and versatile connectivity in one refined device.

Centralized Dual-SSD Control with Advanced Connectivity

• Dual M.2 Storage Support: Holds two 2280 M.2 SSDs, enabling flexible capacity expansion or mirrored data protection in a single compact unit.
• RAID and Clone Modes: Supports RAID 1, independent drives, and offline clone mode to safeguard data or duplicate drives without a computer.
• High-Speed USB-C Interface: USB-C connection delivers up to 10 Gbps data transfer while supporting stable, efficient workflows.
• All-in-One Docking Ports: Integrated USB, HDMI, Ethernet, audio, and card reader ports reduce desk clutter and simplify device management.
• PD 60 W Fast Charging: Powers and charges compatible devices through a single cable for a cleaner, more efficient setup.
• Active Cooling System: Built-in fan activates automatically to maintain stable performance during sustained workloads.

Built for Efficient Workflows and Reliable Storage

The ORICO Miniraid blends dual-drive storage with a full docking experience, allowing fast access to NVMe or NGFF SSDs while supporting monitors, networks, and peripherals from one hub.

Its aluminum alloy housing feels solid and cool to the touch, while the temperature-controlled fan activates at higher heat levels to keep drives operating smoothly during extended transfers or cloning tasks.

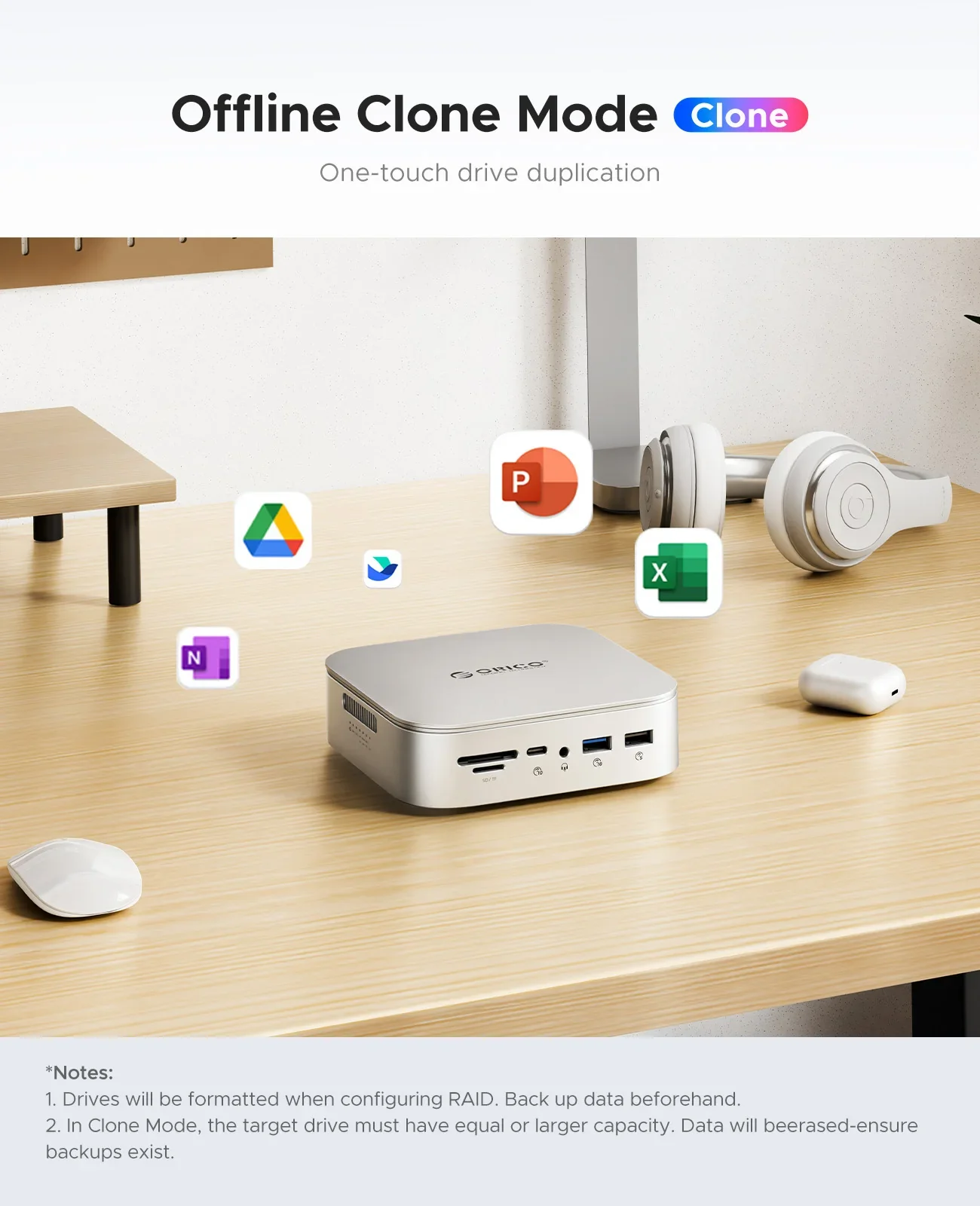

Offline one-touch cloning adds confidence when duplicating data, and clear indicator lights provide immediate visual feedback for power, drive activity, and RAID or clone status.

A Refined Hub for Secure, High-Speed Data Management

This enclosure and docking station delivers a dependable balance of performance, protection, and convenience, supporting long-term productivity for users who rely on fast storage and streamlined connectivity.

Technical Specifications

Specification	Details
Brand	ORICO
Model Number	MR10
Product Type	Dual M.2 SSD Enclosure & Docking Station
Material	Aluminum Alloy
Color	Silver / Gray
Dimensions	127 × 127 × 35.7 mm (5.0 × 5.0 × 1.41 inches)
Input Interface	USB-C (10 Gbps, PD 60 W)
Power Supply	DC 20 V ⎓ 3.25 A
Included Data Cable	USB-C to USB-C, 10 Gbps, 1 m (3.28 ft)
M.2 SSD Slots	2 × M.2 (NVMe / NGFF), 2280 form factor
Maximum Storage Capacity	Up to 8 TB (2 × 4 TB)
RAID / Drive Modes	RAID 1 (Mirror), Independent Mode, Offline Clone Mode
Offline Cloning	Supported (one-touch clone)
USB Ports	1 × USB-A 3.0 (5 Gbps), 1 × USB-A 3.2 (10 Gbps), 1 × USB-C 3.2 (10 Gbps)
Card Reader	2 × SD / TF Card Slots (USB 3.0, simultaneous read)
Video Output	1 × HDMI (4K @ 60 Hz)
Ethernet	1 × RJ45 Gigabit Ethernet
Audio	1 × 3.5 mm Audio Jack
Data Transfer Speed	Up to 10 Gbps
Charging Output	PD 60 W Fast Charging
Cooling System	Built-in temperature-controlled cooling fan
Fan Activation Temperature	50 °C (122 °F)
Indicator Lights	Power, Drive Activity, RAID Status, Clone Progress
Tool-Free Design	Snap-on M.2 cover for tool-free installation
