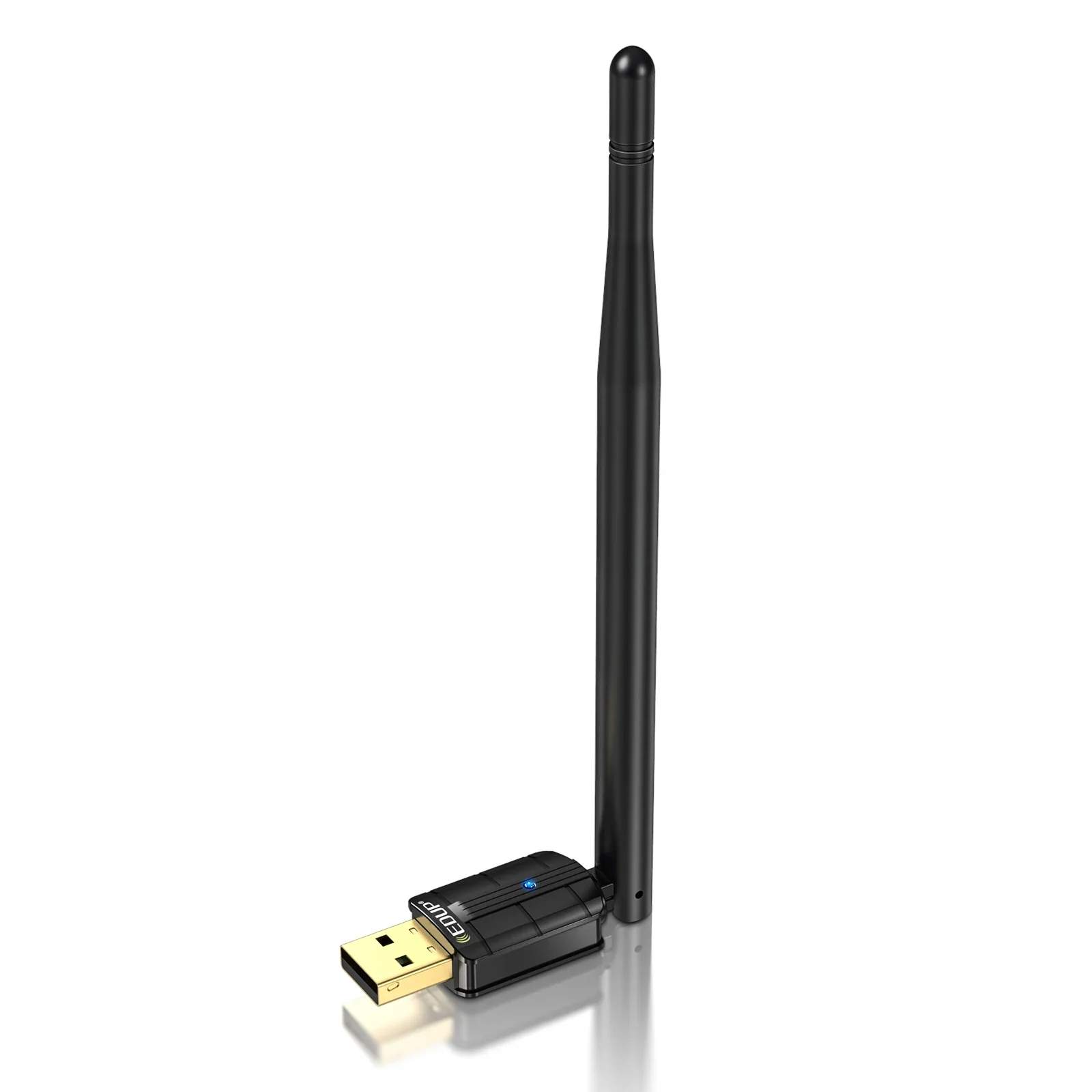

Experience lightning-fast and reliable wireless connectivity with the EDUP AX300GS USB WiFi Adapter. Designed for easy plug-and-play use, it boosts your internet speed and range, ensuring smooth streaming, gaming, and browsing. Compact and portable, this adapter is perfect for upgrading your laptop or desktop’s WiFi performance wherever you go. Stay connected effortlessly with the EDUP AX300GS.

General Information

• Brand Name: EDUP
• Model: AX300GS
• Chipset: AIC8800
• Certification: CE, FCC, RoHS

Wireless Connectivity

• Wireless Standard: IEEE 802.11b/g/n/ax
• Wireless Speed: Up to 286.8 Mbps (11ax)
• Frequency Range: 2.4 GHz
• Transmission Rate: 286 Mbps
• Transmission Power: Up to 20 dBm (MAX EIRP)
• Modulation Technology: MU-MIMO, OFDMA
• Operating Modes: STA, AP, Wi-Fi Direct (concurrent)
• Supported Modes: Infrastructure and Ad-Hoc

Security & Encryption

• Wireless Security: WEP, WPA/WPA2/WPA3-SAE Personal, MFP, Shared Key Authentication, IEEE 802.1X
• Encryption Support: 64/128-bit WEP, 128-bit WPA (TKIP/AES), MIC, IV Expansion

Bluetooth

• Bluetooth Version: Bluetooth 5.1

Interface & Compatibility

• Interface: USB 2.0 Hi-Speed Connector
• Operating System Support: Windows 7 / 10 / 11

Environmental Specifications

• Operating Temperature: -20°C to 70°C (-4°F to 158°F)
• Storage Temperature: -40°C to 90°C (-40°F to 194°F)
• Operating Humidity: 5% to 95% RH (non-condensing)
• Storage Humidity: Max. 90% RH (non-condensing)

Physical Dimensions

• Dimensions: 196 × 19 × 12 mm (7.72 × 0.75 × 0.47 in)
